Products
High voltage products
Gas-Insulated LSIS Switchgear for rated voltages of 110/220 kV
Gas-Insulated Switchgear TGOOD for rated voltage of 110 kV
Complete transformer substations for rated voltages of 35/20/10(6) Kv
Outdoor transformer substations (KTPN type)
Modular transformer substations (BKTPB type)
Medium voltage products
Gas-Insulated Switchgear (GIS) for rated voltages of 35kV, up to 4000A
Gas-Insulated Switchgear (GIS) NXPLUS C for rated voltages of 20/10(6) kV, up to 2500A
Gas-insulated Switchgear KORUS type for rated voltages of 20/10(6) kV up to 1250 A
Gas-insulated Switchgear 8DJH type for rated voltages of 20/10(6) kV up to 630 A
Air-Insulated Switchgear (AIS) NXAIR for rated voltages of 35 kV, up to 3150A
Air-Insulated Switchgear (AIS) NXAIR for rated voltages of 20/10(6) kV, up to 3150A
Low voltage products
Low Voltage Switchboards up to 6300A
Low Voltage Switchboards up to 7000A
Low Voltage Switchboards up to 7000A

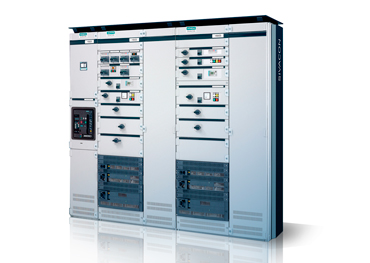

Maximum safety, modern design and high-tech have been perfectly merged, creating the efficient solution. The SIVACON S8 low-voltage switchboard sets new standards worldwide as universal and complete new generation switchgear for safe and simple power distribution up to 4000/7000A in utility and industrial buildings, as well as process industry. In addition to the various functions of staff and system protection, the new technological solutions of the switchgear open totally new areas of usage. SIVACON S8 can be used at all application levels in the low-voltage network:
- Power center or secondary unit substation
- Main switchboard or main distribution board
- Circuit switching
- Subdistribution board, motor control center, distribution board for installation devices, infrastructure objects or industrial use
- Continuous processes, such as in chemistry or petroleum industry.
Customer benefit features
- Verification of safety and quality for every switchboard, design verification performed by testing, its physical properties verified in the test area both for operating and fault situations
- Maximum personal safety ensured by a test verification under arcing fault conditions
- Modern design fit for the most up-to-date production facilities
- Modular construction allows the switchboard to be optimally matched to any requirements of space, panel dimensions starting from 400x500 mm
- The busbars can be positioned at either the top or the rear, thus providing a high level of flexibility
- The universal mounting design allows combining various mounting designs in one cubicle as a cost-efficient solution for different requirements
- Different mounting designs can be combined in one cubicle with ease. The flexible modules allow for the simple exchange or addition of functional units
- Variable cable and busbar connection (rear, back or top)
- Easy access to the energy management systems.
